Home » Products » Testing & Measuring Equipment » Digital Power Clamp Meters

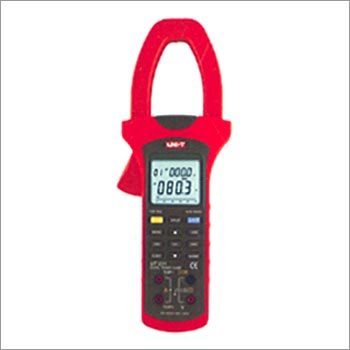

Digital Power Clamp Meters

Digital Power Clamp Meters
Digital Power Clamp Meters
Send Inquiry
Product Code : UT231
Brand Name : UNI-T
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 1200.00 - 30000.00 INR
  • Price
Product Description

The Digital Power Clamp Meters are basically used for voltage detection and current detection. They are perfect to be utilized by the testing department or the analyzer for identifying high and low power current and voltage in a circuit, transmitter, electronic equipment, etc. They can also measure the integrated AC voltage and can also measures recurrence up to 1 khz with 0.01hz determination. The Digital Power Clamp Meters are known for their features such as precise measurement, easy handling and shock proof.

Technical Specification

Specifications

Range

Best Accuracy

Model


UT231

AC Current (A)

40A/100A/400A/1000A

±(2%+5)

AC Voltage (V)

15V/100V/300V/600V

±(1.2%+5)

Frequency (Hz)





Temperature (°C)

-50°C~1000°C

±(1%+3)

Temperature (°F)

-58°F~1832°F

±(1%+5)

Active Power (W)

0.01KW-600KW

±(3%+5)

Apparent Power (VA)

0.01KVA~600KVA

±(3%+5)

Reactive Power (VAr)

0.01KVAr~600KVAr

±(4%+5)

Power Factor

0.3~1

±(0.02%+2)

Phase Angle ( °)

0~360

±1

Active Energy (Wh)

1~9999KWh

±(3%+2)


General Characteristics

Power

1.5V Batteries (LR6) x 4

LCD Size

46mm X 42mm

Product Color

Red and Grey

Product Net Weight

601g

Product Size

303mm X 112mm X 39mm

Standard Accessories

UT231:Battery, Test Lead, Aligator Cilp, USB Interface Cable, PC Software CD, Point Contact Temperature Probe

Standard Individual


Standard Individual Packing

Gift Box, Tool box, English Manual

Standard Carton Per Carton

5pcs

Standard Carton Gross Measurement

510mm X 375mm X 320mm(0.061 CBM per Standard carton

Weight

12kg



Trade Information
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • Delivery Time
  • 15-30 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, Australia, Asia
  • Main Domestic Market
  • All India
