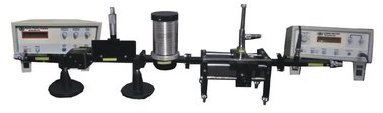

Gunn Based Microwave Test Bench

Gunn Based Microwave Test Bench
Gunn Based Microwave Test Bench
Send Inquiry
Product Code : 64
Brand Name : Swastik
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • Price Range
  • 30000.00 - 45000.00 INR
Product Description

Experiment 1

Study of V-I characteristics of Gunn Diode

Experiment 2

To determine the frequency & wavelength in a rectangular waveguide working on TE10 mode

Experiment 3

To determine the Standing Wave-Ratio and Reflection Coefficient

Experiment 4

To measure an unknown Impedance with Smith chart

Experiment 5

Study of Attenuator

Experiment 6

Study the voice communication by using microwave test bench.

Experiment 7

Study the pc to pc communication by using microwave test bench.

Experiment 8

Study of following characteristic of Gunn Diode
a. Output power and frequency as a function of voltage.
b. Square wave modulation through PIN diode

Trade Information
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • Delivery Time
  • 15-20 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
  • Main Domestic Market
  • All India
