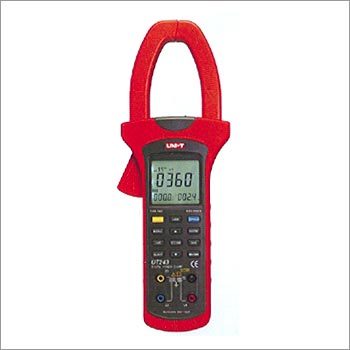

Power And Harmonics Clamp Meters

Power And Harmonics Clamp Meters
Power And Harmonics Clamp Meters
Send Inquiry
Product Code : UT243
Brand Name : UNI-T
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price
  • Price Range
  • 1000.00 - 30000.00 INR
Product Description

The Power And Harmonics Clamp Meters are designed and developed using quality-approved components. They are made in compliance with industry standards prevailing in the market. These meters are used to measure the current field induced in any type of circuit. The Power And Harmonics Clamp Meters is thoroughly checked on well-defined parameters to ensure they are free from manufacturing flaws. Further, they are available in various dimensions and other specifications to ensure there smooth working and easy operation.

Technical Specification

Specifications

Range

Best Accuracy

Model


UT243

AC Current (A)

50A/250A/1000A

±(2%+5)

AC Voltage (V)

150V/300V/600V

±(1.2%+5)

Frequency (Hz)

50Hz~60Hz


Active Power (W)

0.01kW-600kW

±(3%+5)

Apparent Power (VA)

0.01kVA~600kVA

±(3%+5)

Reactive Power (VAr)

0.01kVAr~600kVAr

±(4%+5)

Power Factor

0.3~1

±0.022

Phase Factor ()

0°-360°

±2

Active Energy (Wh)

1~9999kWh

±(3%+2)

General Characteristic

Power

1.5V Batteries(LR6) x 4

LCD Size

46mm X 42mm

Product Colour

Red and Grey

Product Net Weight

601g

Product Size

303mm X 112mm X 39mm

Standard Accessories

UT241-Test Lead, Alligator Clips, Tool Box

UT242/UT243-Test Lead, Alligator Clips, USB Interface Cable, Tool Box, PC Software CD

Standard Individual Packing

Gift Box, Manual

Standard Quantity Per Carton

5 PCs

Standard Carton Measurement

510mm X 375mm X 320mm (0.016CBM Per Standard Carton)

Standard Carton Gross Weight

12.3Kg



Trade Information
  • Payment Terms
  • Paypal, Western Union, Telegraphic Transfer (T/T), Letter of Credit (L/C), Cheque, Cash in Advance (CID), Cash Advance (CA), Cash Against Delivery (CAD)
  • Delivery Time
  • 15-30 Days
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, Australia, Asia
  • Main Domestic Market
  • All India
